magnetic coupling
1.ISO9001,14001,TS16949,RoHS
2.Complete Product Stock
3.Customized
Type: Permanent, magnetic coupling
Composite: NdFeB Magnet
Shape: customize
Inclued: Industrial Magnet
dimensions: customize
OEM: acceptable
ODM: acceptable
tolerances: +/-0.1mm
Material: neodymium, fe and others
Plating/Coating: Ni-Cu-Ni (Nickel) or other
Magnetization Direction: axial, thickness, diametrically etc.
density: 7.6g/cm3
Max Operating Temp: 200 ℃
Application: Widely used in magneic drive pumps, autoclaves, mixers vaccum sealing transmission machinery industries and ect
Applications
Some diver propulsion vehicles and remotely operated underwater vehicles use magnetic coupling to transfer torque from the electric motor to the prop. Magnetic gearing is also being explored for use in utility scale wind turbines as a means of enhancing reliability. The magnetic coupling has several advantages over a traditional stuffing box.
Some aquarium pumps are Magnetic Drive Pumps -- they use magnetic coupling between the motor on the dry side of an aquarium wall and the propeller/impeller in the water on the other side of that aquarium wall.
A magnetic stirrer is another example of magnetic coupling.

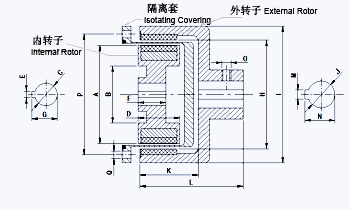

| Item | Internal Roto(mm) | External Rotor(mm) | Isolating Covering(mm) | |||||||||||||||||||
| A | B | C | D | E | F | G | Shaft Pin | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | |
| IPMC02-3LM00 | Φ35 | - | Φ10 | 26 | 3 | 18 | 11.4 | M6X12 | Φ42 | Φ60 | Φ14 | 35 | 55 | 5 | 16.3 | M4 | Φ50 | 4-Φ5.4 | Φ38 | Φ60 | 6 | 6 |
| IPMC02-5LM00 | Φ42 | - | Φ12 | 27 | 4 | 18 | 13.8 | M6X16 | Φ49 | Φ72 | Φ16 | 33 | 63 | 5 | 18.3 | M5 | Φ60 | 4-Φ6.7 | Φ44 | Φ74 | 8 | 8 |
| IPMC02-10LM00 | Φ56 | - | Φ12 | 30 | 4 | 20 | 13.8 | M6X16 | Φ63 | Φ89 | Φ18 | 44 | 74 | 6 | 20.8 | M6 | Φ75 | 4-Φ6.7 | Φ58 | Φ89 | 8 | 8 |
| IPMC02-16LM00 | Φ58 | - | Φ20 | 62 | 8 | 35 | 22.8 | M6X16 | Φ68 | Φ90 | Φ24 | 88.5 | 120 | _ | _ | M8 | Φ87 | 6-Φ6.7 | Φ60 | Φ100 | 10 | 8 |
| IPMC02-16LM01 | Φ56 | _ | Φ20 | 45 | 6 | 25 | 22.8 | M6X20 | Φ63 | Φ89 | Φ28 | 59 | 89 | 8 | 31.3 | M6 | Φ75 | 4-Φ6.7 | Φ58 | Φ89 | 8 | 8 |
| IPMC02-16LM02 | Φ56 | M6 | Φ25 | 45 | 8 | 25 | 28.3 | _ | Φ63 | Φ89 | Φ25 | 59 | 89 | 8 | 28.3 | M6 | Φ75 | 4-Φ6.7 | Φ58 | Φ89 | 8 | 8 |
| IPMC02-16LM03 | Φ56 | _ | Φ12 | 45 | 4 | 25 | 13.8 | _ | Φ63 | Φ89 | Φ24 | 59 | 89 | 8 | 27.3 | M6 | Φ75 | 4-Φ6.7 | Φ58 | Φ89 | 8 | 8 |
| IPMC02-16LH00 | Φ56 | _ | Φ14 | 45 | 5 | 25 | 16.3 | M6X16 | Φ63 | Φ89 | Φ12.7 | 59 | 89 | _ | _ | M6 | Φ75 | 4-Φ6.7 | Φ58 | Φ89 | 8 | 8 |
| IPMC02-20LH00 | Φ71 | _ | Φ16 | 48 | 5 | 16 | 18.3 | M6X16 | Φ78 | Φ109 | Φ24 | 63 | 108 | 8 | 27.3 | M5 | Φ100 | 4-Φ8.7 | Φ73 | Φ118 | 14 | 7.5 |
| Φ88 | - | Φ20 | 29 | 6 | 25 | 22.8 | M8X20 | Φ97 | Φ122 | Φ24 | 44 | 84 | 8 | 27.3 | M8 | Φ108 | 6-Φ6.7 | Φ91 | Φ122 | 8 | 8 | |
| IPMC02-22LM00 | Φ88 | - | Φ20 | 37 | 6 | 25 | 22.8 | M8X20 | Φ97 | Φ122 | Φ24 | 52 | 92 | 8 | 27.3 | M8 | Φ108 | 6-Φ6.7 | Φ91 | Φ122 | 8 | 8 |
| IPMC02-30LL00 | Φ56 | _ | Φ16 | 66 | _ | 16 | 18.3 | - | Φ66 | Φ110 | Φ20 | 85 | 120 | 6 | 22.8 | M6 | Φ80 | 8-Φ9 | Φ60 | Φ110 | 10 | 8 |
| IPMC02-30LM00 | Φ88 | M5 | Φ20 | 34 | 6 | 17 | 22.8 | _ | Φ97 | Φ122 | Φ24 | 50 | 90 | 8 | 27.3 | M8 | Φ108 | 6-Φ6.7 | Φ91 | Φ122 | 8 | 8 |
| IPMC02-40LM00 | Φ101 | - | Φ25 | 50 | 8 | 35 | 28.3 | M10X20 | Φ109 | Φ140 | Φ38 | 70.2 | 141 | 10 | 41.3 | M10 | Φ126 | 8-Φ6.5 | Φ103 | Φ140 | 12 | 6 |
| IPMC02-50LM00 | Φ101 | - | Φ25 | 60 | 8 | 36 | 28.3 | M10X20 | Φ109 | Φ140 | Φ38 | 75 | 125 | 10 | 41.3 | M10 | Φ126 | 8-Φ6.7 | Φ103 | Φ140 | 12 | 6 |
| IPMC02-65LM00 | Φ101 | - | Φ25 | 75 | 8 | 45 | 28.3 | M10X20 | Φ109 | Φ140 | Φ38 | 96 | 166 | 10 | 41.3 | M10 | Φ126 | 8-Φ6.7 | Φ103 | Φ140 | 12 | 6 |
| IPMC02-80LM00 | Φ141 | _ | Φ35 | 65 | 10 | 45 | 38.3 | M12X25 | Φ152 | Φ180 | Φ42 | 83.5 | 143 | 12 | 45.3 | M10 | Φ165 | 12-Φ6.7 | Φ145 | Φ180 | 14 | 4 |
| IPMC02-120LL00 | Φ141 | _ | _ | 60 | 10 | 47 | 38.3 | M12X25 | Φ152 | Φ180 | Φ48 | 80 | 130 | 14 | 51.8 | M10 | Φ165 | 8-Φ6.7 | Φ145 | Φ180 | 14 | 4 |
