Magnetic wheels Neodymium-iron-boron (NdFeB)

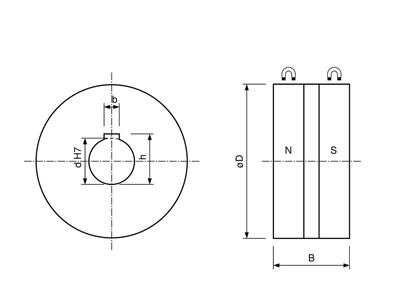

Magnetic wheels with Two-pole magnetization, NdFeB, bore with fitting tolerance H7 and groove
Article No. D mm d mm B mm b mm H mm Force* N Temperature °C Optimal sheet thickness¹ mm
HSMW-25 25+0.1/-0.1 10 15+0.5/-0.5 3 10.6 25 100 < 0.5
HSMW-32 32+0.1/-0.1 10 15+0.5/-0.5 4 11.1 45 100 < 0.5
HSMW-40 40+0.1/-0.1 12 27+0.5/-0.5 4 13.1 70 100 < 1.0
HSMW-50 50+0.1/-0.1 12 27+0.5/-0.5 4 13.1 90 100 < 1.0
HSMW-63 63+0.15/-0.15 16 39+0.5/-0.5 5 17.3 100 100 < 1.0
HSMW-80 80+0.15/-0.15 20 39+0.5/-0.5 6 21.7 140 100 < 1.5
HSMW-100 100+0.2/-0.2 25 51+0.5/-0.5 8 26.7 290 100 < 1.5
HSMW-125 125+0.2/-0.2 30 63+0.5/-0.5 8 31.7 340 100 < 2.0
HSMW-160 160+0.25/-0.25 40 75+0.5/-0.5 12 42.1 440 100 < 2.0
¹ This value indicates at which sheet thickness the multi-pole magnetic wheel offers greater holding power compared with a two-pole magnetic wheel (for the same diameter D).
